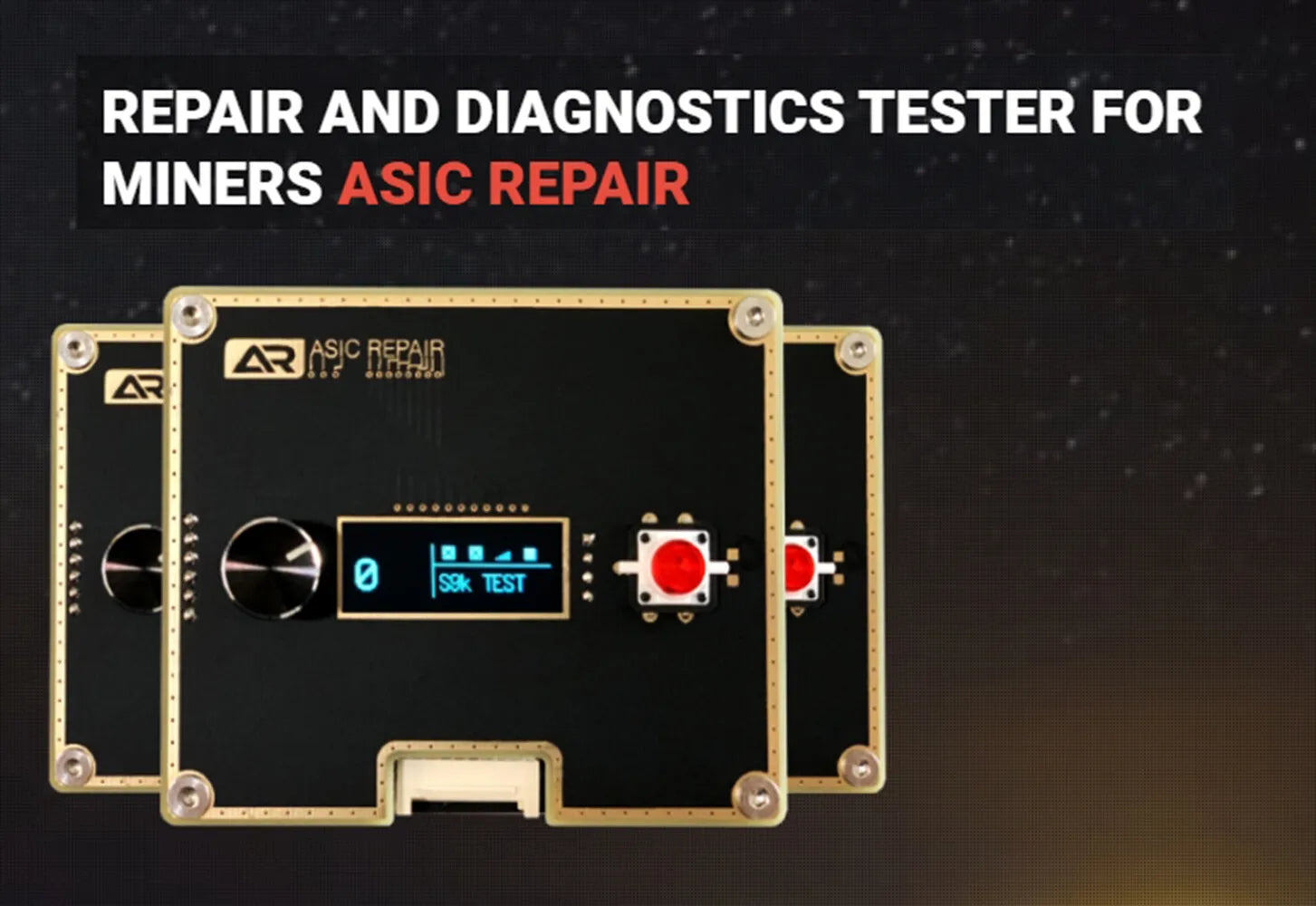

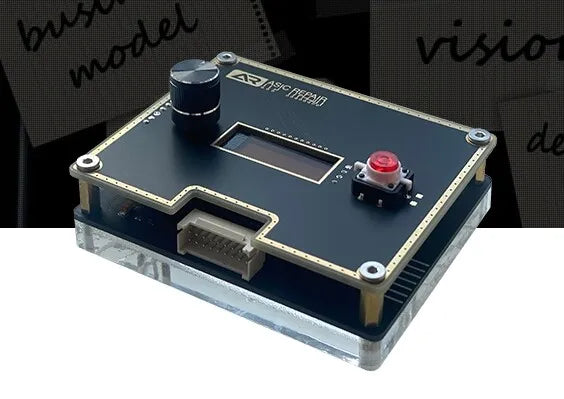

ASIC REPAIR PRO TESTER fixture BITMAIN Antminer S19j Pro s19 XP s17 s17+, L7

Handy, functional and informative interface.

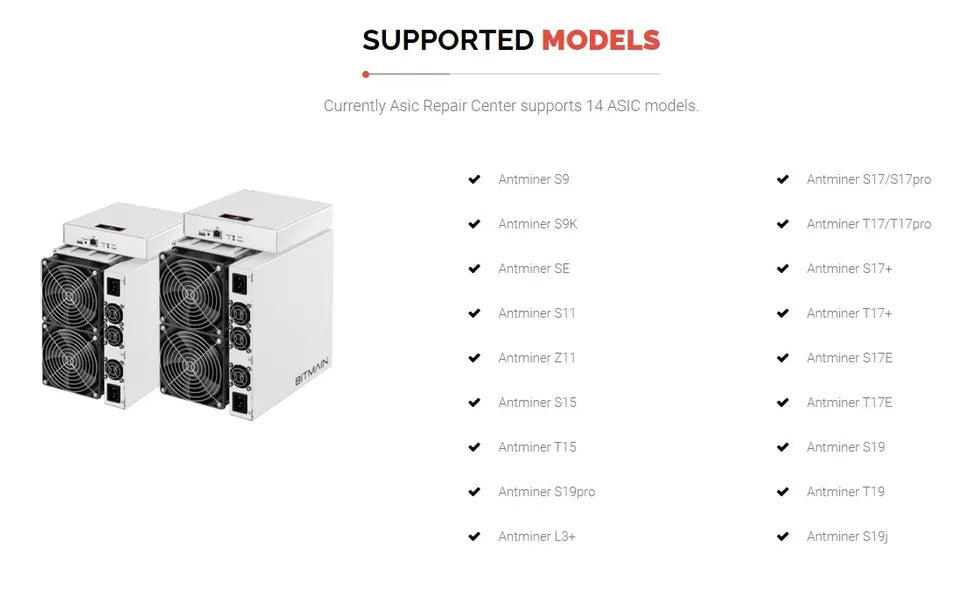

MODELS

Diagnostics and repair more than 18 ANTMINER models. From the simplest and most common, to the latest in mining industry, including newest developments from Bitmain:
L3+, L7, S9, S9k, S9se, S11, Z11, S15, T15, S17, T17, S17pro, T17pro, S17+, T17+, S17e, T17e, S19, T19, S19pro, S19j Pro, S19J, S19 XP, all others BITMAIN models

EEPROM FLASHING

EEPROM flashing of any of the supported models takes less than 30 seconds. It is performed without computer, additional programmer or power supply for the hash-board.

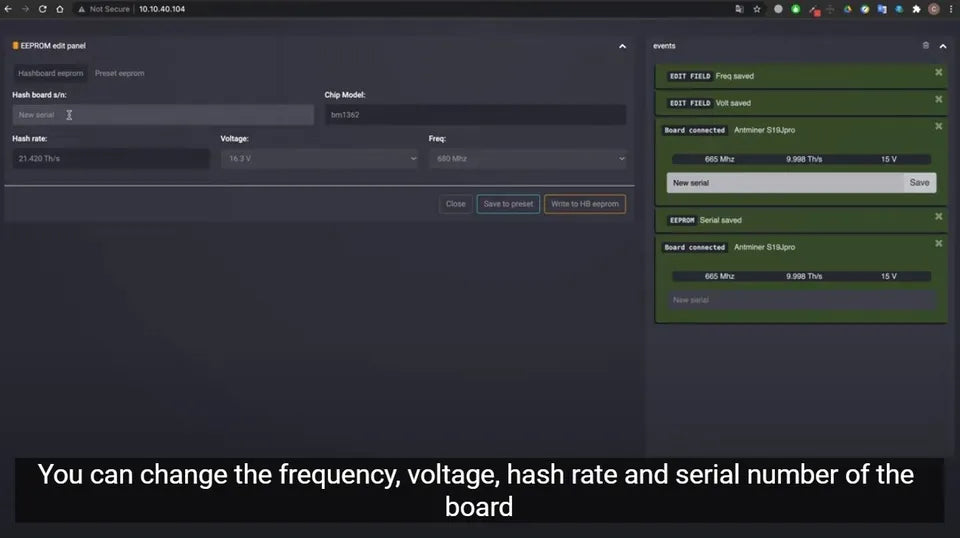

• HASH BOARD EEPROM EDITOR

  Hashboard model automatic detection.

  EEPROM firmware integrity check.

  Display of the board parameters recorded in the EEPROM firmware (voltage, frequency, serial number), with the ability to edit.

  Ability to change EEPROM firmware template saved in the tester for quick and convenient flashing of multiple devices without using the web interface.

NO HEAT

During testing, the board doesn't get under full load, that means additional cooling is not needed. The board is diagnosed on the engineer's desk without the time and effort required to install and remove the board from the miner case.

DIAGNOSTICS

Asic Repair Center helps to determine which exact chip is not working on a hash-board and how many chip failures have occurred, simplifying the repair process and reducing repair time by 6 times.

UNIVERSALITY

Instant switch between models, tester functions and an intuitive interface allow you to diagnose a large number of different hash-boards in a short period of time and not be distracted.

RELIABILITY

ESD protection allows you to safely "hot-plug" the board and not waste time disconnecting and reconnecting power to the board and tester.

·         FAST AND EASY MODEL CHANGE

The model of the board can be changed with lightning speed! Just turn the selector on the tester or pick the model you need from the according menu in the web interface and you are ready to go.

You no longer need to have several testers and switch between them. You don't need to swap SD cards and wait for tester to load, wasting your time. Now you can just turn the selector knob!

If you repair and support more then one model, it will save another hour a day!

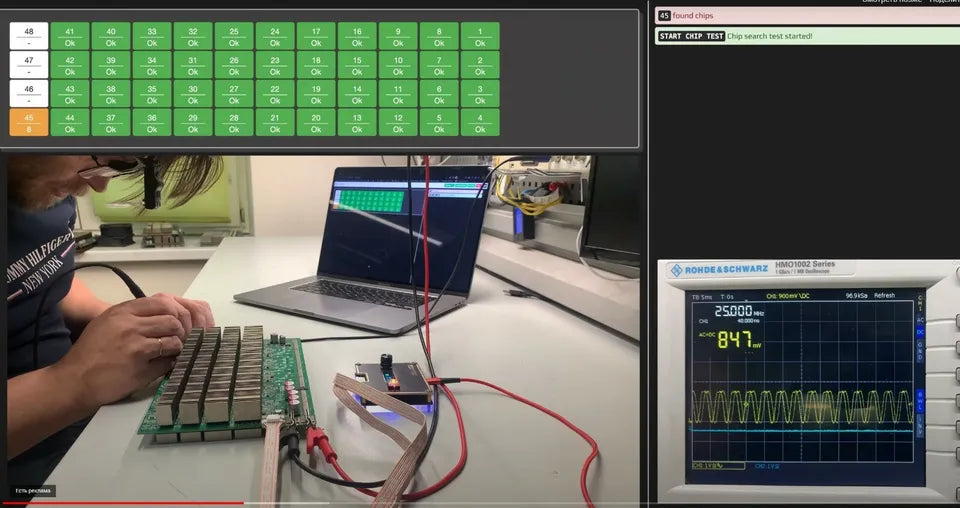

• CHIP MAP

Exact map of chip placement.

Chip map mimics the real miner hash-board, therefore saving your time on looking for faulty chip on every repair. You just need to find the highlighted one and start diagnostics!

You don't have to remember every chip placement or look at the scheme every time. Our map will do that for you!

If you repair around 50 chips per day, this function will help to save up to 1 hour, meaning you will be able to perform more repairs!

• DEFECTIVE CHIP LOG

Web interface displays history of all malfunctioning chips during the test. You will be able to get the information on:

• What exact chip is faulty right at that moment;
• Number of failures in every exact chip;
• Whole test operation history, including all faulty chips;
• At the end of the test you will get a full recap on damaged chips;

This function would make it impossible for you to miss a malfunction, and will make repairs more convenient, demonstrative and reliable.

·         MOBILITY

Asic Repair Center is powered by a standard USB type-c, which means you can power it from any adapter, laptop or even a powerbank! You don't need another power adapter, we'll give mobility and movement freedom instead!

·         ALL INFORMATION IS ON THE DISPLAY

All status data is shown on the display of the tester.

Asic Repair Center can be used even without the web interface. You still won't miss any information.
